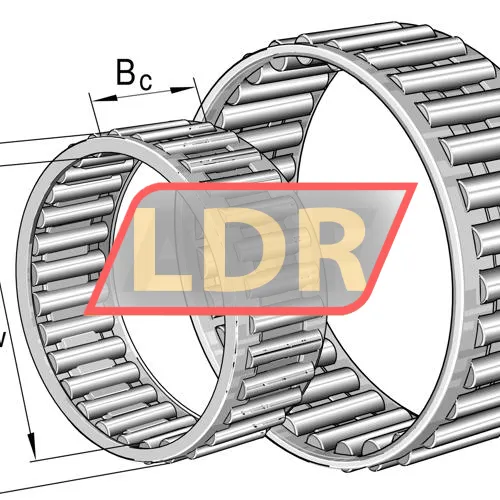

INA K50X55X20-B/0-7 Resim 4
Ürüne ait görsel ürün fotoğrafı ve resmi.
Fiyatı: 217.60 ₺
Özellikler
Ağırlık ve Boyutlar
| İç (d) MM |
50 |
| Dış (D) MM |
55 |
| En (B) MM |
20 |
| İç (d) Inch |
1.9685 |
| Dış (D) Inch |
2.1654 |
| En (B) Inch |
0.7874 |
| Ağırlık |
0.0434 kg
|
Ürün Özellikleri
Data from Schaeffler (medias)
| Outside diameter of needle roller complement (E w) mm |
55 |
| Width (B c) mm |
20 |
| Radial Static Load Rating C0r (N) |
60000 |
| Radial Dynamic Load Rating Cr (N) |
26500 |
| Temel statik yük derecesi, radyal (C 0r) |
"60000.0000" |
| Hız sınırlaması (n G) |
9300 |
| Referans Hızı (n u03d1r) |
5500 |
| ECLASS number |
23-05-09-04 |
| ECLASS2 number |
23-05-09-04 |
| Medias description |
Needle roller cage assembly K, single row |
Suffix description
| B |
The Significance Of This Sign Is Not Determined Separately. They Are In Need For Appointment Of Special Features Of The Construction Of Internal Form External Uses. In General, The Use These Only Temporarily, During A Transitional Time To Avoid Confusion. In Some Cases, They Also For Permanent Appointment Of Bearings And Parts Of The Same Type And Size, But With A Differ Interior Design. (Source: Ina-Catalogue No. 307) |
| /0-7 |
Micron - Needle Sort |
