INA AXK1528-A/0-10

INA AXK1528-A/0-10

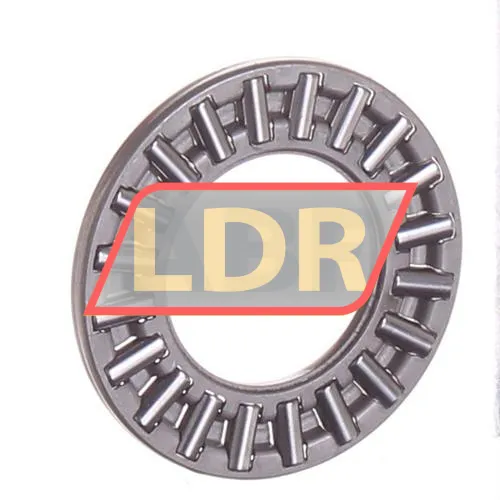

INA AXK1528-A/0-10 rulman resim 1
INA AXK1528-A/0-10 rulman resim 2
INA AXK1528-A/0-10 rulman resim 3
INA AXK1528-A/0-10 rulman resim 4
INA AXK1528-A/0-10 rulman resim 5
Fiyatı: 60.00 ₺
Özellikler
Marka INA
Ürün No AXK1528-A/0-10 INA
Üretici No 0000352209065
EAN 4047643173070
Kategori İtme Yatağı - İğne Makaralı
Ağırlık ve Boyutlar
İç (d) MM 15
Dış (D) MM 28
En (B) MM 2
İç (d) Inch 0.5906
Dış (D) Inch 1.1024
En (B) Inch 0.0787
Ağırlık 0.004 kg
Data from Schaeffler (medias)
Outside diameter (D c) mm 28
Rolling element diameter (D W) mm 2
Axial Static Load Rating C0a (N) 36000
Axial Dynamic Load Rating Ca (N) 11400
Hız sınırlaması (n G) 13400
Raceway dimension (E a) mm 27
Raceway dimension (E b) mm 17
Referans Hızı (n u03d1r) 5100
ECLASS number 23-05-11-90
ECLASS2 number 23-05-11-90
Medias description Axial needle roller and cage assemblies, single direction, to DIN 5405-2
Suffix description
A The Significance Of This Sign Is Not Determined Separately. They Are In Need For Appointment Of Special Features Of The Construction Of Internal Form External Uses. In General, The Use These Only Temporarily, During A Transitional Time To Avoid Confusion. In Some Cases, They Also For Permanent Appointment Of Bearings And Parts Of The Same Type And Size, But With A Differ Interior Design. (Source: Ina-Catalogue No. 307)
/0-10 Micron - Needle Sort
